feature |
| |

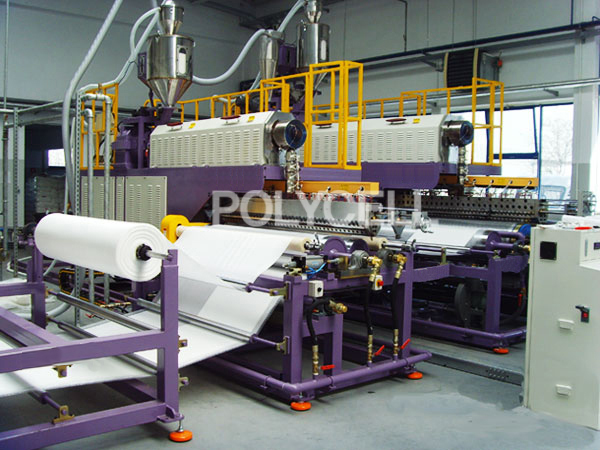

The equipment produces
Air Bubbled sheet through mold using LDPE continuously.

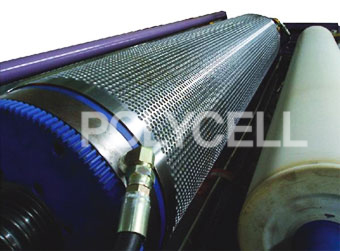

Bubble Cylinder is connected with vacuum pump and it makes
air bubble (embossing pattern).
Always maintain the proper vacuum pressure which can be
adjusted by using of ball valve.

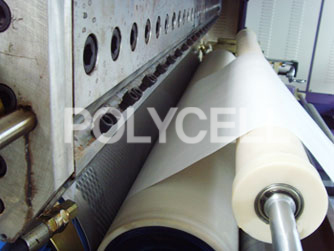

Forming process, the pair of films (one is embossed and
the other is flat)are laminated.
Bubble Cylinder is various in customer sizes. |
 |
| |
|
| |
|
| |
|
| |
|
| |
specification |
| |
ITEM/
MODEL |
PKC-AB90 |
PKC-AB100/80 |
| LAYER |
2 |
3 |
| CAPACITY (Kg/Hr) |
100 |
Approx.100-200 |
| SHEET WIDTH (mm) |
Max. 1,500 |
Max. 2,000 |
| SHEET THICKNESS (mm) |
0.03-0.08 |
0.03-0.08 |
| SCREW DIA. (mm) |
100 |
100/80 |
| STANDARD BUBBLE SIZE |
9.5Ø
x 4.3mm(H) |
|
|
| |
|
| |
|
| |
APPLICATION |
| |
*
Packaging
* Cushion & material
* Protector
* Car sun shade, color mat
* Cargo bag
* Insulation materials
* Pool cover |
| |
|
|
|
|
|
