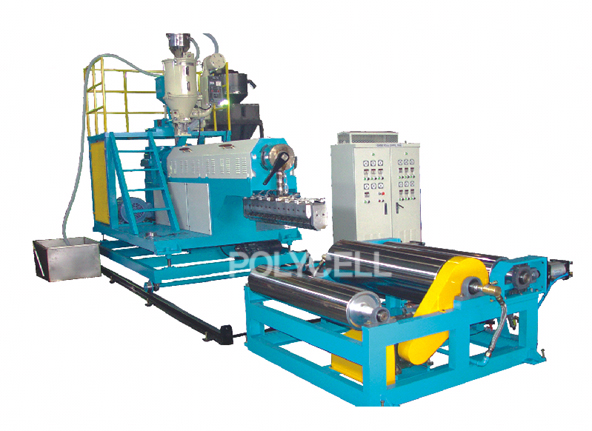

PS Coating Machine can be installed
with P.S Coating Machine T-DIE as direct extrusion process
on the PS foam sheet.
Coating can achieve Strong and glossy on surface
|
| |
ITEM / MODEL |
PKC-PC90 |
RAW MATERIAL |
HIPS (60)
: GPPS (40) |
PELLET
SIZE |
Ø 1.6 - 3.2 |
COATING THICKNESS (MM)
|
Appx.
0.05 - 0.3mm |
COATING WIDTH |
1,040mm |
LINE SPEED |
Appx.
5 -25m/min |
EXTRUSION OUT-PUT |
Appx.
70kg/hr |
|
|

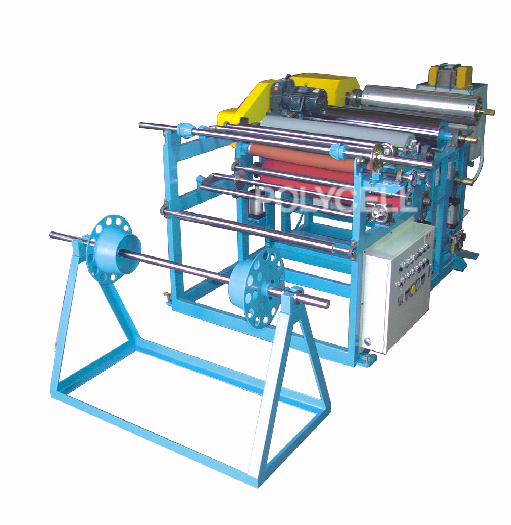

| HIPS FILM LAMINATING MACHINE |
| |
|
| |
|
| |
ITEM / MODEL |
PKC-PF1300 |
COOLING
ROLLER |
Ø
265*1500(L) |
BABANA
ROLLER |
Ø 125*1500(L) |
AIR CYLINDER |
100
* 100 STROKE |
HEATER
|
1.4
kw
|
|
|
| |
|
